1.需求說明

1.1 需求

到現在為止的網頁訪問量

到現在為止從搜索引擎引流過來的網頁訪問量

項目總體框架如圖所示：

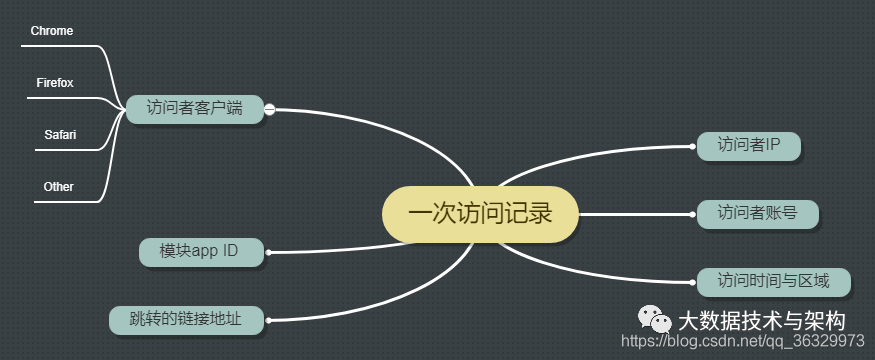

1.2 用戶行為日志內容

2.模擬日志數據制作

用Python制作模擬數據，數據包含：

不同的URL地址->url_paths
不同的跳轉鏈接地址->http_refers
不同的搜索關鍵詞->search_keyword
不同的狀態碼->status_codes
不同的IP地址->ip_slices

#coding=UTF-8import randomimport time
url_paths = [    "class/112.html",    "class/128.html",    "class/145.html",    "class/146.html",    "class/131.html",    "class/130.html",    "class/145.html",    "learn/821.html",    "learn/825.html",    "course/list"]
http_refers=[    "http://www.baidu.com/s?wd={query}",    "https://www.sogou.com/web?query={query}",    "http://cn.bing.com/search?q={query}",    "http://search.yahoo.com/search?p={query}",]
search_keyword = [    "Spark+Sql",    "Hadoop",    "Storm",    "Spark+Streaming",    "大數據",    "面試"]
status_codes = ["200","404","500"]
ip_slices = [132,156,132,10,29,145,44,30,21,43,1,7,9,23,55,56,241,134,155,163,172,144,158]
def sample_url():    return random.sample(url_paths,1)[0]
def sample_ip():    slice = random.sample(ip_slices,4)    return ".".join([str(item) for item in slice])
def sample_refer():    if random.uniform(0,1) > 0.2:        return "-"    refer_str = random.sample(http_refers,1)    query_str = random.sample(search_keyword,1)    return refer_str[0].format(query=query_str[0])
def sample_status():    return random.sample(status_codes,1)[0]
def generate_log(count = 10):    time_str = time.strftime("%Y-%m-%d %H:%M:%S",time.localtime())
    f = open("/home/hadoop/tpdata/project/logs/access.log","w+")    while count >= 1:        query_log = "{ip}\t{local_time}\t\"GET /{url} HTTP/1.1\"\t{status}\t{refer}".format(            local_time=time_str,            url=sample_url(),            ip=sample_ip(),            refer=sample_refer(),            status=sample_status())        print(query_log)        f.write(query_log + "\n")        count = count - 1
if __name__ == '__main__':    generate_log(100)

使用Linux Crontab定時調度工具，使其每一分鐘產生一批數據。

表達式：

*/1 * * * *

編寫python運行腳本：

vi?log_generator.shpython?/home/hadoop/tpdata/log.pychmod u+x log_generator.sh

配置Crontab：?

crontab?-e*/1 * * * * /home/hadoop/tpdata/project/log_generator.sh

2.Flume實時收集日志信息

開發時選型：

編寫streaming_project.conf：

vi streaming_project.conf

exec-memory-logger.sources = exec-sourceexec-memory-logger.sinks = logger-sinkexec-memory-logger.channels = memory-channel
exec-memory-logger.sources.exec-source.type = execexec-memory-logger.sources.exec-source.command = tail -F /home/hadoop/tpdata/project/logs/access.logexec-memory-logger.sources.exec-source.shell = /bin/sh -c
exec-memory-logger.channels.memory-channel.type = memory
exec-memory-logger.sinks.logger-sink.type = logger
exec-memory-logger.sources.exec-source.channels = memory-channelexec-memory-logger.sinks.logger-sink.channel = memory-channel

啟動Flume測試：

flume-ng agent \--name exec-memory-logger \--conf $FLUME_HOME/conf \--conf-file /home/hadoop/tpdata/project/streaming_project.conf \-Dflume.root.logger=INFO,console

啟動Zookeeper:

./zkServer.sh start

啟動Kafka Server：

./kafka-server-start.sh -daemon $KAFKA_HOME/config/server.properties

其中server.properties：

broker.id=0############################# Socket Server Settings #############################listeners=PLAINTEXT://:9092host.name=hadoop000advertised.host.name=192.168.1.9advertised.port=9092num.network.threads=3num.io.threads=8socket.send.buffer.bytes=102400socket.receive.buffer.bytes=102400socket.request.max.bytes=104857600############################# Log Basics #############################log.dirs=/home/hadoop/app/tmp/kafka-logsnum.partitions=1num.recovery.threads.per.data.dir=1############################# Log Retention Policy #############################log.retention.hours=168log.segment.bytes=1073741824log.retention.check.interval.ms=300000log.cleaner.enable=false############################# Zookeeper #############################zookeeper.connect=hadoop000:2181zookeeper.connection.timeout.ms=6000

啟動一個Kafka的消費者(topic用的之前的，沒有的話可以新建一個)：

kafka-console-consumer.sh --zookeeper hadoop000:2181 --topic streamingtopic

修改Flume配置文件，使得Flume的sink鏈接到Kafka：

vi streaming_project2.conf

exec-memory-kafka.sources = exec-sourceexec-memory-kafka.sinks = kafka-sinkexec-memory-kafka.channels = memory-channel
exec-memory-kafka.sources.exec-source.type = execexec-memory-kafka.sources.exec-source.command = tail -F /home/hadoop/tpdata/project/logs/access.logexec-memory-kafka.sources.exec-source.shell = /bin/sh -c
exec-memory-kafka.channels.memory-channel.type = memory
exec-memory-kafka.sinks.kafka-sink.type = org.apache.flume.sink.kafka.KafkaSinkexec-memory-kafka.sinks.kafka-sink.brokerList = hadoop000:9092exec-memory-kafka.sinks.kafka-sink.topic = streamingtopicexec-memory-kafka.sinks.kafka-sink.batchSize = 5exec-memory-kafka.sinks.kafka-sink.requiredAcks = 1
exec-memory-kafka.sources.exec-source.channels = memory-channelexec-memory-kafka.sinks.kafka-sink.channel = memory-channel

啟動Flume：

flume-ng agent \--name exec-memory-kafka \--conf $FLUME_HOME/conf \--conf-file /home/hadoop/tpdata/project/streaming_project2.conf \-Dflume.root.logger=INFO,console

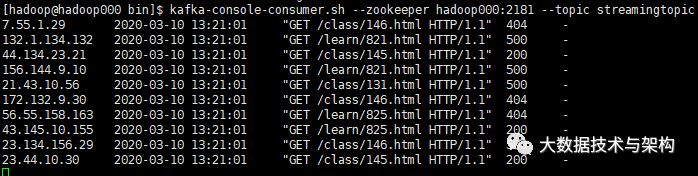

kafka消費者拿到數據：

4.Spark Streaming對接Kafka對數據消費

4.1 pom.xml：

  4.0.0  com.taipark.spark  sparktrain  1.0  2008      2.11.8    0.9.0.0    2.2.0    2.6.0-cdh5.7.0    1.2.0-cdh5.7.0
            cloudera      https://repository.cloudera.com/artifactory/cloudera-repos
            org.scala-lang      scala-library      ${scala.version}

          org.apache.hadoop      hadoop-client      ${hadoop.version}
          org.apache.hbase      hbase-client      ${hbase.version}
          org.apache.hbase      hbase-server      ${hbase.version}
          org.apache.spark      spark-streaming_2.11      ${spark.version}
          org.apache.spark      spark-streaming-kafka-0-8_2.11      2.2.0
              org.apache.spark      spark-streaming-flume_2.11      ${spark.version}
              org.apache.spark      spark-streaming-flume-sink_2.11      ${spark.version}
          org.apache.commons      commons-lang3      3.5
          org.apache.spark      spark-sql_2.11      ${spark.version}
          mysql      mysql-connector-java      8.0.13
          com.fasterxml.jackson.module      jackson-module-scala_2.11      2.6.5
          net.jpountz.lz4      lz4      1.3.0
          org.apache.flume.flume-ng-clients      flume-ng-log4jappender      1.6.0
      src/main/scala    src/test/scala                  org.scala-tools        maven-scala-plugin                                            compile              testCompile                                                ${scala.version}                      -target:jvm-1.5                                      org.apache.maven.plugins        maven-eclipse-plugin                  true                      ch.epfl.lamp.sdt.core.scalabuilder                                ch.epfl.lamp.sdt.core.scalanature                                org.eclipse.jdt.launching.JRE_CONTAINER            ch.epfl.lamp.sdt.launching.SCALA_CONTAINER                                                  org.scala-tools        maven-scala-plugin                  ${scala.version}

4.2 連通Kafka

新建Scala文件——WebStatStreamingApp.scala，首先使用Direct模式連通Kafka：

package com.taipark.spark.project
import kafka.serializer.StringDecoderimport org.apache.spark.SparkConfimport org.apache.spark.streaming.kafka.KafkaUtilsimport org.apache.spark.streaming.{Seconds, StreamingContext}
/**  * 使用Spark Streaming消費Kafka的數據  */object WebStatStreamingApp {  def main(args: Array[String]): Unit = {
    if(args.length != 2){      System.err.println("Userage:WebStatStreamingApp  ");      System.exit(1);    }    val Array(brokers,topics) = args
    val sparkConf = new SparkConf()      .setAppName("WebStatStreamingApp")      .setMaster("local[2]")    val ssc = new StreamingContext(sparkConf,Seconds(60))
    val kafkaParams = Map[String,String]("metadata.broker.list"-> brokers)    val topicSet = topics.split(",").toSet    val messages = KafkaUtils      .createDirectStream[String,String,StringDecoder,StringDecoder](      ssc,kafkaParams,topicSet    )
    messages.map(_._2).count().print()
    ssc.start()    ssc.awaitTermination()
  }}

設定參數：

hadoop000:9092 streamingtopic

在本地測試是否連通：

連通成功，可以開始編寫業務代碼完成數據清洗(ETL)。

4.3 ETL

新建工具類DateUtils.scala：

package com.taipark.spark.project.utils
import java.util.Date
import org.apache.commons.lang3.time.FastDateFormat
/**  * 日期時間工具類  */object DateUtils {  val YYYYMMDDHHMMSS_FORMAT = FastDateFormat.getInstance("yyyy-MM-dd HH:mm:ss")  val TARGET_FORMAT = FastDateFormat.getInstance("yyyyMMddHHmmss")
  def getTime(time:String)={    YYYYMMDDHHMMSS_FORMAT.parse(time).getTime  }
  def parseToMinute(time:String)={    TARGET_FORMAT.format(new Date(getTime(time)))  }
  def main(args: Array[String]): Unit = {//    println(parseToMinute("2020-03-10 15:00:05"))  }}

新建ClickLog.scala：

package com.taipark.spark.project.domian
/**  * 清洗后的日志信息  */case class ClickLog(ip:String,time:String,courseId:Int,statusCode:Int,referer:String)

修改WebStatStreamingApp.scala：

package com.taipark.spark.project.spark
import com.taipark.spark.project.domian.ClickLogimport com.taipark.spark.project.utils.DateUtilsimport kafka.serializer.StringDecoderimport org.apache.spark.SparkConfimport org.apache.spark.streaming.kafka.KafkaUtilsimport org.apache.spark.streaming.{Seconds, StreamingContext}
/**  * 使用Spark Streaming消費Kafka的數據  */object WebStatStreamingApp {  def main(args: Array[String]): Unit = {
    if(args.length != 2){      System.err.println("Userage:WebStatStreamingApp  ");      System.exit(1);    }    val Array(brokers,topics) = args
    val sparkConf = new SparkConf()      .setAppName("WebStatStreamingApp")      .setMaster("local[2]")    val ssc = new StreamingContext(sparkConf,Seconds(60))
    val kafkaParams = Map[String,String]("metadata.broker.list"-> brokers)    val topicSet = topics.split(",").toSet    val messages = KafkaUtils      .createDirectStream[String,String,StringDecoder,StringDecoder](      ssc,kafkaParams,topicSet    )
    //messages.map(_._2).count().print()
    //ETL//    30.163.55.7  2020-03-10 14:32:01  "GET /class/112.html HTTP/1.1"  404  http://www.baidu.com/s?wd=Hadoop    val logs = messages.map(_._2)    val cleanData = logs.map(line => {      val infos = line.split("\t")      //infos(2) = "GET /class/112.html HTTP/1.1"      val url = infos(2).split(" ")(1)      var courseId = 0
      //拿到課程編號      if(url.startsWith("/class")){        val courseIdHTML = url.split("/")(2)        courseId = courseIdHTML.substring(0,courseIdHTML.lastIndexOf(".")).toInt      }
      ClickLog(infos(0),DateUtils.parseToMinute(infos(1)),courseId,infos(3).toInt,infos(4))    }).filter(clicklog => clicklog.courseId != 0)
    cleanData.print()
    ssc.start()    ssc.awaitTermination()
  }}

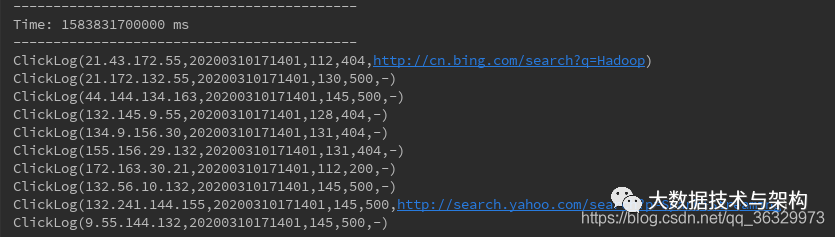

run起來測試一下：

ETL完成。

4.4 功能一：到現在為止某網站的訪問量

使用數據庫來存儲統計結果，可視化前端根據yyyyMMdd courseid把數據庫里的結果展示出來。

選擇HBASE作為數據庫。要啟動HDFS與Zookeeper。

啟動HDFS：

./start-dfs.sh

啟動HBASE：

./start-hbase.sh

./hbase shelllist

HBASE表設計：

create 'web_course_clickcount','info'

hbase(main):008:0> desc 'web_course_clickcount'Table web_course_clickcount is ENABLED                                                                 web_course_clickcount                                                                                  COLUMN FAMILIES DESCRIPTION                                                                            {NAME => 'info', BLOOMFILTER => 'ROW', VERSIONS => '1', IN_MEMORY => 'false', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', TTL => 'FOREVER', COMPRESSION => 'NONE', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}                                      1 row(s) in 0.1650 seconds

Rowkey設計：

day_courseid

使用Scala來操作HBASE：

新建網頁點擊數實體類 CourseClickCount.scala：

package com.taipark.spark.project.domian
/**  * 課程網頁點擊數  * @param day_course HBASE中的rowkey  * @param click_count 對應的點擊總數  */case class CourseClickCount(day_course:String,click_count:Long)

新建數據訪問層 CourseClickCountDAO.scala：

package com.taipark.spark.project.dao
import com.taipark.spark.project.domian.CourseClickCount
import scala.collection.mutable.ListBuffer
object CourseClickCountDAO {  val tableName = "web_course_clickcount"  val cf = "info"  val qualifer = "click_count"
  /**    * 保存數據到HBASE    * @param list    */  def save(list:ListBuffer[CourseClickCount]): Unit ={
  }
  /**    * 根據rowkey查詢值    * @param day_course    * @return    */  def count(day_course:String):Long={    0l  }}

利用Java實現HBaseUtils打通其與HBASE：

package com.taipark.spark.project.utils;
import org.apache.hadoop.conf.Configuration;import org.apache.hadoop.hbase.client.HBaseAdmin;import org.apache.hadoop.hbase.client.HTable;import org.apache.hadoop.hbase.client.Put;import org.apache.hadoop.hbase.util.Bytes;
import java.io.IOException;
/** * HBase操作工具類:Java工具類采用單例模式封裝 */public class HBaseUtils {    HBaseAdmin admin = null;    Configuration configuration = null;
    //私有構造方法(單例模式)    private HBaseUtils(){        configuration = new Configuration();        configuration.set("hbase.zookeeper.quorum",                "hadoop000:2181");        configuration.set("hbase.rootdir",                "hdfs://hadoop000:8020/hbase");
        try {            admin = new HBaseAdmin(configuration);        } catch (IOException e) {            e.printStackTrace();        }    }    private static HBaseUtils instance = null;
    public static synchronized HBaseUtils getInstance(){        if(instance == null){            instance = new HBaseUtils();        }        return instance;    }
    //根據表名獲取HTable實例    public HTable getTable(String tableName){        HTable table = null;        try {            table = new HTable(configuration,tableName);        } catch (IOException e) {            e.printStackTrace();        }        return table;    }
    /**     * 添加一條記錄到HBASE表     * @param tableName 表名     * @param rowkey    表rowkey     * @param cf    表的columnfamily     * @param column    表的列     * @param value     寫入HBASE的值     */    public void put(String tableName,String rowkey,String cf,String column,String value){        HTable table = getTable(tableName);        Put put = new Put(Bytes.toBytes(rowkey));        put.add(Bytes.toBytes(cf),Bytes.toBytes(column),Bytes.toBytes(value));        try {            table.put(put);        } catch (IOException e) {            e.printStackTrace();        }    }
    public static void main(String[] args) {//        HTable hTable = HBaseUtils.getInstance().getTable("web_course_clickcount");//        System.out.println(hTable.getName().getNameAsString());        String tableName = "web_course_clickcount";        String rowkey = "20200310_88";        String cf = "info";        String column = "click_count";        String value = "2";        HBaseUtils.getInstance().put(tableName,rowkey,cf,column,value);
    }}

測試運行：

測試工具類成功后繼續編寫DAO的代碼：

package com.taipark.spark.project.dao
import com.taipark.spark.project.domian.CourseClickCountimport com.taipark.spark.project.utils.HBaseUtilsimport org.apache.hadoop.hbase.client.Getimport org.apache.hadoop.hbase.util.Bytes
import scala.collection.mutable.ListBuffer
object CourseClickCountDAO {  val tableName = "web_course_clickcount"  val cf = "info"  val qualifer = "click_count"
  /**    * 保存數據到HBASE    * @param list    */  def save(list:ListBuffer[CourseClickCount]): Unit ={    val table = HBaseUtils.getInstance().getTable(tableName)
    for(ele <- list){      table.incrementColumnValue(        Bytes.toBytes(ele.day_course),        Bytes.toBytes(cf),        Bytes.toBytes(qualifer),        ele.click_count)    }  }
  /**    * 根據rowkey查詢值    * @param day_course    * @return    */  def count(day_course:String):Long={    val table = HBaseUtils.getInstance().getTable(tableName)
    val get = new Get(Bytes.toBytes(day_course))    val value = table.get(get).getValue(cf.getBytes,qualifer.getBytes)
    if (value == null){      0L    }else{      Bytes.toLong(value)    }  }
  def main(args: Array[String]): Unit = {    val list = new ListBuffer[CourseClickCount]    list.append(CourseClickCount("2020311_8",8))    list.append(CourseClickCount("2020311_9",9))    list.append(CourseClickCount("2020311_10",1))    list.append(CourseClickCount("2020311_2",15))
    save(list)  }}

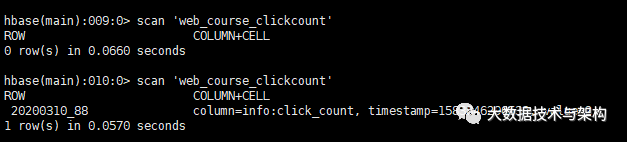

測試運行一下，用hbase shell查看：

scan 'web_course_clickcount'

將Spark Streaming處理結果寫到HBASE中：

package com.taipark.spark.project.spark
import com.taipark.spark.project.dao.CourseClickCountDAOimport com.taipark.spark.project.domian.{ClickLog, CourseClickCount}import com.taipark.spark.project.utils.DateUtilsimport kafka.serializer.StringDecoderimport org.apache.spark.SparkConfimport org.apache.spark.streaming.kafka.KafkaUtilsimport org.apache.spark.streaming.{Seconds, StreamingContext}
import scala.collection.mutable.ListBuffer
/**  * 使用Spark Streaming消費Kafka的數據  */object WebStatStreamingApp {  def main(args: Array[String]): Unit = {
    if(args.length != 2){      System.err.println("Userage:WebStatStreamingApp  ");      System.exit(1);    }    val Array(brokers,topics) = args
    val sparkConf = new SparkConf()      .setAppName("WebStatStreamingApp")      .setMaster("local[2]")    val ssc = new StreamingContext(sparkConf,Seconds(60))
    val kafkaParams = Map[String,String]("metadata.broker.list"-> brokers)    val topicSet = topics.split(",").toSet    val messages = KafkaUtils      .createDirectStream[String,String,StringDecoder,StringDecoder](      ssc,kafkaParams,topicSet    )
    //messages.map(_._2).count().print()
    //ETL//    30.163.55.7  2020-03-10 14:32:01  "GET /class/112.html HTTP/1.1"  404  http://www.baidu.com/s?wd=Hadoop    val logs = messages.map(_._2)    val cleanData = logs.map(line => {      val infos = line.split("\t")      //infos(2) = "GET /class/112.html HTTP/1.1"      val url = infos(2).split(" ")(1)      var courseId = 0
      //拿到課程編號      if(url.startsWith("/class")){        val courseIdHTML = url.split("/")(2)        courseId = courseIdHTML.substring(0,courseIdHTML.lastIndexOf(".")).toInt      }
      ClickLog(infos(0),DateUtils.parseToMinute(infos(1)),courseId,infos(3).toInt,infos(4))    }).filter(clicklog => clicklog.courseId != 0)
//    cleanData.print()
    cleanData.map(x => {      //HBase rowkey設計：20200311_9      ((x.time.substring(0,8)) + "_" + x.courseId,1)    }).reduceByKey(_+_).foreachRDD(rdd =>{      rdd.foreachPartition(partitionRecords =>{        val list = new ListBuffer[CourseClickCount]
        partitionRecords.foreach(pair =>{          list.append(CourseClickCount(pair._1,pair._2))        })
        CourseClickCountDAO.save(list)      })    })
    ssc.start()    ssc.awaitTermination()
  }}

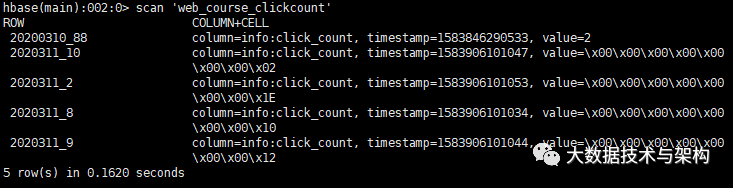

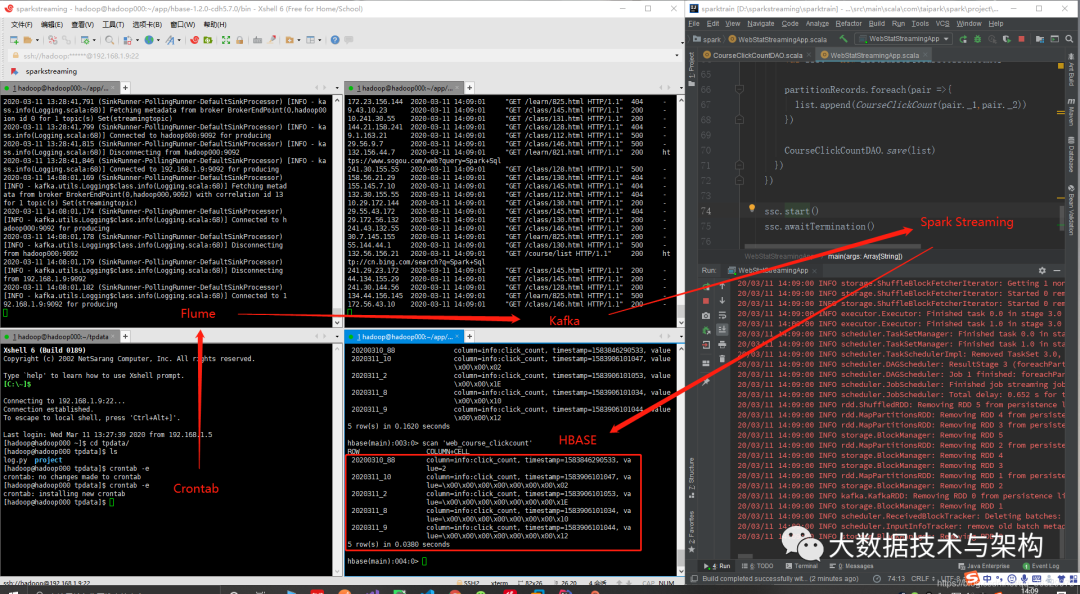

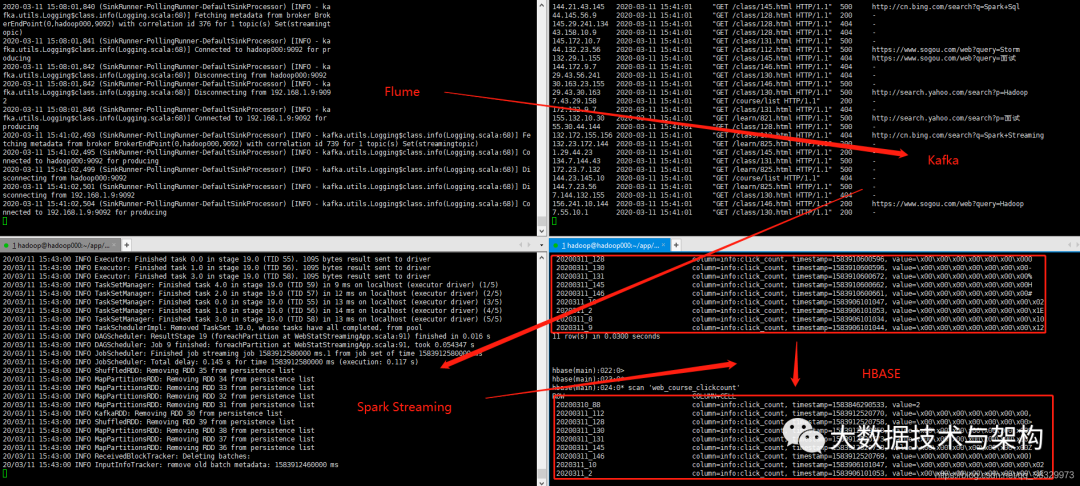

測試：

4.5 功能二：到現在為止某網站的搜索引擎引流訪問量

HBASE表設計：

create 'web_course_search_clickcount','info'

設計rowkey：

day_search_1

確定實體類：

package com.taipark.spark.project.domian
/**  * 網站從搜索引擎過來的點擊數實體類  * @param day_search_course  * @param click_count  */case class CourseSearchClickCount (day_search_course:String,click_count:Long)

開發DAO CourseSearchClickCountDAO.scala：

package com.taipark.spark.project.dao
import com.taipark.spark.project.domian.{CourseClickCount, CourseSearchClickCount}import com.taipark.spark.project.utils.HBaseUtilsimport org.apache.hadoop.hbase.client.Getimport org.apache.hadoop.hbase.util.Bytes
import scala.collection.mutable.ListBuffer
object CourseSearchClickCountDAO {  val tableName = "web_course_search_clickcount"  val cf = "info"  val qualifer = "click_count"
  /**    * 保存數據到HBASE    * @param list    */  def save(list:ListBuffer[CourseSearchClickCount]): Unit ={    val table = HBaseUtils.getInstance().getTable(tableName)
    for(ele <- list){      table.incrementColumnValue(        Bytes.toBytes(ele.day_search_course),        Bytes.toBytes(cf),        Bytes.toBytes(qualifer),        ele.click_count)    }  }
  /**    * 根據rowkey查詢值    * @param day_search_course    * @return    */  def count(day_search_course:String):Long={    val table = HBaseUtils.getInstance().getTable(tableName)
    val get = new Get(Bytes.toBytes(day_search_course))    val value = table.get(get).getValue(cf.getBytes,qualifer.getBytes)
    if (value == null){      0L    }else{      Bytes.toLong(value)    }  }
  def main(args: Array[String]): Unit = {    val list = new ListBuffer[CourseSearchClickCount]    list.append(CourseSearchClickCount("2020311_www.baidu.com_8",8))    list.append(CourseSearchClickCount("2020311_cn.bing.com_9",9))
    save(list)    println(count("020311_www.baidu.com_8"))  }}

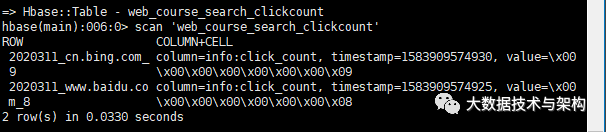

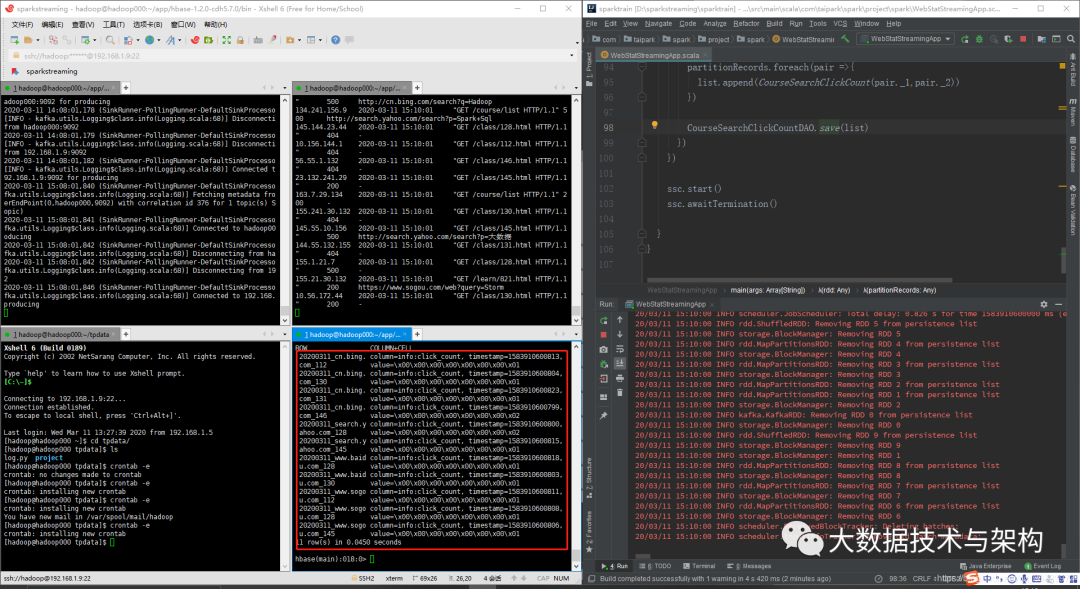

測試：

在Spark Streaming中寫到HBASE：

package com.taipark.spark.project.spark
import com.taipark.spark.project.dao.{CourseClickCountDAO, CourseSearchClickCountDAO}import com.taipark.spark.project.domian.{ClickLog, CourseClickCount, CourseSearchClickCount}import com.taipark.spark.project.utils.DateUtilsimport kafka.serializer.StringDecoderimport org.apache.spark.SparkConfimport org.apache.spark.streaming.kafka.KafkaUtilsimport org.apache.spark.streaming.{Seconds, StreamingContext}
import scala.collection.mutable.ListBuffer
/**  * 使用Spark Streaming消費Kafka的數據  */object WebStatStreamingApp {  def main(args: Array[String]): Unit = {
    if(args.length != 2){      System.err.println("Userage:WebStatStreamingApp  ");      System.exit(1);    }    val Array(brokers,topics) = args
    val sparkConf = new SparkConf()      .setAppName("WebStatStreamingApp")      .setMaster("local[2]")    val ssc = new StreamingContext(sparkConf,Seconds(60))
    val kafkaParams = Map[String,String]("metadata.broker.list"-> brokers)    val topicSet = topics.split(",").toSet    val messages = KafkaUtils      .createDirectStream[String,String,StringDecoder,StringDecoder](      ssc,kafkaParams,topicSet    )
    //messages.map(_._2).count().print()
    //ETL//    30.163.55.7  2020-03-10 14:32:01  "GET /class/112.html HTTP/1.1"  404  http://www.baidu.com/s?wd=Hadoop    val logs = messages.map(_._2)    val cleanData = logs.map(line => {      val infos = line.split("\t")      //infos(2) = "GET /class/112.html HTTP/1.1"      val url = infos(2).split(" ")(1)      var courseId = 0
      //拿到課程編號      if(url.startsWith("/class")){        val courseIdHTML = url.split("/")(2)        courseId = courseIdHTML.substring(0,courseIdHTML.lastIndexOf(".")).toInt      }
      ClickLog(infos(0),DateUtils.parseToMinute(infos(1)),courseId,infos(3).toInt,infos(4))    }).filter(clicklog => clicklog.courseId != 0)
//    cleanData.print()
    //需求一    cleanData.map(x => {      //HBase rowkey設計：20200311_9      ((x.time.substring(0,8)) + "_" + x.courseId,1)    }).reduceByKey(_+_).foreachRDD(rdd =>{      rdd.foreachPartition(partitionRecords =>{        val list = new ListBuffer[CourseClickCount]
        partitionRecords.foreach(pair =>{          list.append(CourseClickCount(pair._1,pair._2))        })
        CourseClickCountDAO.save(list)      })    })
    //需求二    cleanData.map(x =>{      //http://www.baidu.com/s?wd=Spark+Streaming      val referer = x.referer.replaceAll("http://","/")      //http:/www.baidu.com/s?wd=Spark+Streaming      val splits = referer.split("/")      var host = ""      //splits.length == 1 => -      if(splits.length > 2){        host = splits(1)      }
      (host,x.courseId,x.time)    }).filter(_._1 != "").map(x =>{      (x._3.substring(0,8) + "_" + x._1 + "_" + x._2,1)    }).reduceByKey(_+_).foreachRDD(rdd =>{      rdd.foreachPartition(partitionRecords =>{        val list = new ListBuffer[CourseSearchClickCount]
        partitionRecords.foreach(pair =>{          list.append(CourseSearchClickCount(pair._1,pair._2))        })
        CourseSearchClickCountDAO.save(list)      })    })
    ssc.start()    ssc.awaitTermination()
  }}

測試：

5.生產環境部署

不要硬編碼，把setAppName和setMaster注釋掉：

  val sparkConf = new SparkConf()//      .setAppName("WebStatStreamingApp")//      .setMaster("local[2]")

Maven打包部署前，需要將pom中指定build目錄的兩行注釋掉，以防報錯：

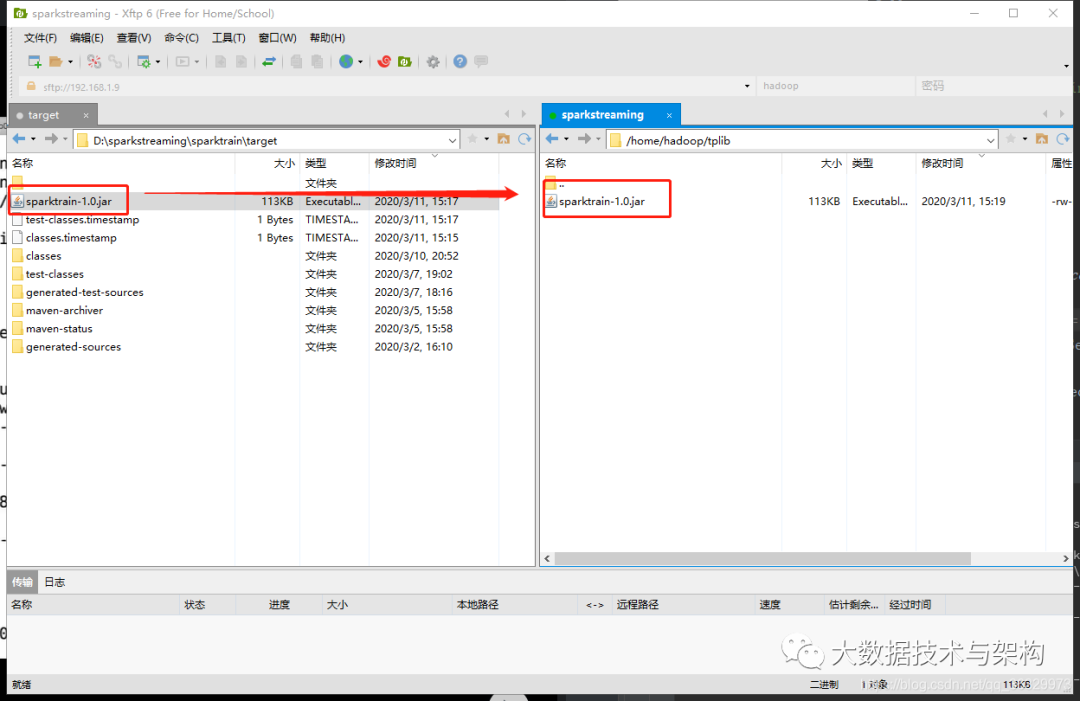

Maven打包傳到服務器：

利用spark-submit提交：

./spark-submit \--master local[5] \--name WebStatStreamingApp \--class com.taipark.spark.project.spark.WebStatStreamingApp \/home/hadoop/tplib/sparktrain-1.0.jar \hadoop000:9092 streamingtopic

報錯：

Exception in thread "main" java.lang.NoClassDefFoundError: org/apache/spark/streaming/kafka/KafkaUtils$

修改，添加jar包spark-streaming-kafka-0-8_2.11：

./spark-submit \--master local[5] \--name WebStatStreamingApp \--class com.taipark.spark.project.spark.WebStatStreamingApp \--packages org.apache.spark:spark-streaming-kafka-0-8_2.11:2.2.0 \/home/hadoop/tplib/sparktrain-1.0.jar \hadoop000:9092 streamingtopic

報錯：

java.lang.NoClassDefFoundError: org/apache/hadoop/hbase/client/HBaseAdmin

修改，增加HBASE的jar包：

./spark-submit \--master local[5] \--name WebStatStreamingApp \--class com.taipark.spark.project.spark.WebStatStreamingApp \--packages org.apache.spark:spark-streaming-kafka-0-8_2.11:2.2.0 \--jars $(echo /home/hadoop/app/hbase-1.2.0-cdh5.7.0/lib/*.jar | tr ' ' ',') \/home/hadoop/tplib/sparktrain-1.0.jar \hadoop000:9092 streamingtopic

運行：

后臺運行成功

6.Spring Boot開發

6.1 測試ECharts

新建一個Spring Boot項目，下載ECharts，利用其在線編譯，獲得echarts.min.js，放在resources/static/js下

pox.xml添加一個依賴：

                    org.springframework.boot            spring-boot-starter-thymeleaf

resources/templates里做一個test.html：

        test

新建java文件：

package com.taipark.spark.web;
import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestMethod;import org.springframework.web.bind.annotation.RestController;import org.springframework.web.servlet.ModelAndView;
/** * 測試 */@RestControllerpublic class HelloBoot {    @RequestMapping(value = "/hello",method = RequestMethod.GET)    public String sayHello(){        return "HelloWorld!";    }
    @RequestMapping(value = "/first",method = RequestMethod.GET)    public ModelAndView firstDemo(){        return new ModelAndView("test");    }}

測試一下：

成功

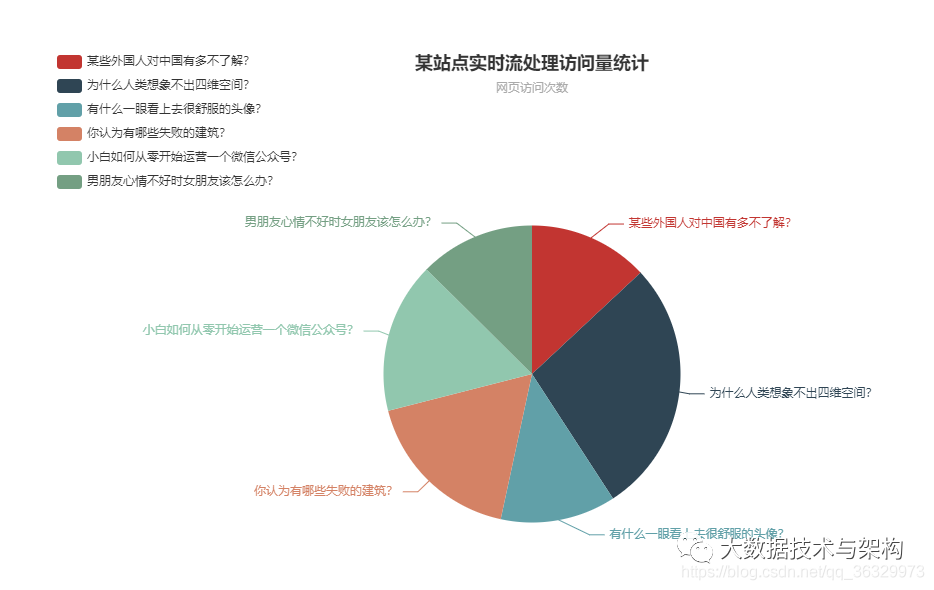

6.2 動態實現ECharts

添加repository：

                        cloudera            https://repository.cloudera.com/artifactory/cloudera-repos/

添加依賴：

                    org.apache.hbase            hbase-client            1.2.0-cdh5.7.0

創建HBaseUtils.java：

package com.taipark.spark.web.utils;
import org.apache.hadoop.conf.Configuration;import org.apache.hadoop.hbase.client.*;import org.apache.hadoop.hbase.filter.Filter;import org.apache.hadoop.hbase.filter.PrefixFilter;import org.apache.hadoop.hbase.util.Bytes;

import java.io.IOException;import java.util.HashMap;import java.util.Map;
public class HBaseUtils {    HBaseAdmin admin = null;    Configuration configuration = null;
    //私有構造方法(單例模式)    private HBaseUtils(){        configuration = new Configuration();        configuration.set("hbase.zookeeper.quorum",                "hadoop000:2181");        configuration.set("hbase.rootdir",                "hdfs://hadoop000:8020/hbase");
        try {            admin = new HBaseAdmin(configuration);        } catch (IOException e) {            e.printStackTrace();        }    }    private static HBaseUtils instance = null;
    public static synchronized HBaseUtils getInstance(){        if(instance == null){            instance = new HBaseUtils();        }        return instance;    }
    //根據表名獲取HTable實例    public HTable getTable(String tableName){        HTable table = null;        try {            table = new HTable(configuration,tableName);        } catch (IOException e) {            e.printStackTrace();        }        return table;    }
    /**     * 根據表名和輸入條件獲取HBASE的記錄數     * @param tableName     * @param dayCourse     * @return     */    public Map query(String tableName,String condition) throws Exception{        Map map = new HashMap<>();
        HTable table = getTable(tableName);        String cf ="info";        String qualifier = "click_count";
        Scan scan = new Scan();        Filter filter = new PrefixFilter(Bytes.toBytes(condition));        scan.setFilter(filter);        ResultScanner rs = table.getScanner(scan);        for(Result result:rs){            String row = Bytes.toString(result.getRow());            long clickCount = Bytes.toLong(result.getValue(cf.getBytes(), qualifier.getBytes()));            map.put(row,clickCount);        }        return map;    }
    public static void main(String[] args) throws Exception{        Map map = HBaseUtils.getInstance().query("web_course_clickcount", "20200311");
        for(Map.Entry entry:map.entrySet()){            System.out.println(entry.getKey() + ":" + entry.getValue());        }    }}

測試通過：

定義網頁訪問數量Bean：

package com.taipark.spark.web.domain;
import org.springframework.stereotype.Component;
/** * 網頁訪問數量實體類 */@Componentpublic class CourseClickCount {
    private String name;    private long value;
    public String getName() {        return name;    }
    public void setName(String name) {        this.name = name;    }
    public long getValue() {        return value;    }
    public void setValue(long value) {        this.value = value;    }}

DAO層：

package com.taipark.spark.web.dao;
import com.taipark.spark.web.domain.CourseClickCount;import com.taipark.spark.web.utils.HBaseUtils;import org.springframework.stereotype.Component;

import java.util.ArrayList;import java.util.List;import java.util.Map;
/** * 網頁訪問數量數據訪問層 */@Componentpublic class CourseClickDAO {    /**     * 根據天查詢     * @param day     * @return     * @throws Exception     */    public List query(String day) throws Exception{
        List list = new ArrayList<>();        //去HBase表中根據day獲取對應網頁的訪問量        Map map = HBaseUtils.getInstance().query("web_course_clickcount", "20200311");        for(Map.Entry entry:map.entrySet()){            CourseClickCount model = new CourseClickCount();            model.setName(entry.getKey());            model.setValue(entry.getValue());
            list.add(model);        }        return list;    }
    public static void main(String[] args) throws Exception{        CourseClickDAO dao = new CourseClickDAO();        List list = dao.query( "20200311");
        for(CourseClickCount model:list){            System.out.println(model.getName() + ":" + model.getValue());        }    }}

使用JSON需要引入：

                    net.sf.json-lib            json-lib            2.4            jdk15

Web層：

package com.taipark.spark.web.spark;
import com.taipark.spark.web.dao.CourseClickDAO;import com.taipark.spark.web.domain.CourseClickCount;import net.sf.json.JSONArray;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestMethod;import org.springframework.web.bind.annotation.ResponseBody;import org.springframework.web.bind.annotation.RestController;import org.springframework.web.servlet.ModelAndView;
import java.util.HashMap;import java.util.List;import java.util.Map;
/** * web層 */@RestControllerpublic class WebStatApp {
    private static Map courses = new HashMap<>();    static {        courses.put("112","某些外國人對中國有多不了解？");        courses.put("128","你認為有哪些失敗的建筑？");        courses.put("145","為什么人類想象不出四維空間？");        courses.put("146","有什么一眼看上去很舒服的頭像？");        courses.put("131","男朋友心情不好時女朋友該怎么辦？");        courses.put("130","小白如何從零開始運營一個微信公眾號？");        courses.put("821","為什么有人不喜歡極簡主義？");        courses.put("825","有哪些書看完后會讓人很后悔沒有早看到？");    }
//    @Autowired//    CourseClickDAO courseClickDAO;//    @RequestMapping(value = "/course_clickcount_dynamic",method = RequestMethod.GET)//    public ModelAndView courseClickCount() throws Exception{//        ModelAndView view = new ModelAndView("index");//        List list = courseClickDAO.query("20200311");////        for(CourseClickCount model:list){//            model.setName(courses.get(model.getName().substring(9)));//        }//        JSONArray json = JSONArray.fromObject(list);////        view.addObject("data_json",json);////        return view;//    }
    @Autowired    CourseClickDAO courseClickDAO;    @RequestMapping(value = "/course_clickcount_dynamic",method = RequestMethod.POST)    @ResponseBody    public List courseClickCount() throws Exception{        ModelAndView view = new ModelAndView("index");        List list = courseClickDAO.query("20200311");        for(CourseClickCount model:list){            model.setName(courses.get(model.getName().substring(9)));        }
        return list;    }
    @RequestMapping(value = "/echarts",method = RequestMethod.GET)    public ModelAndView echarts(){        return new ModelAndView("echarts");    }}

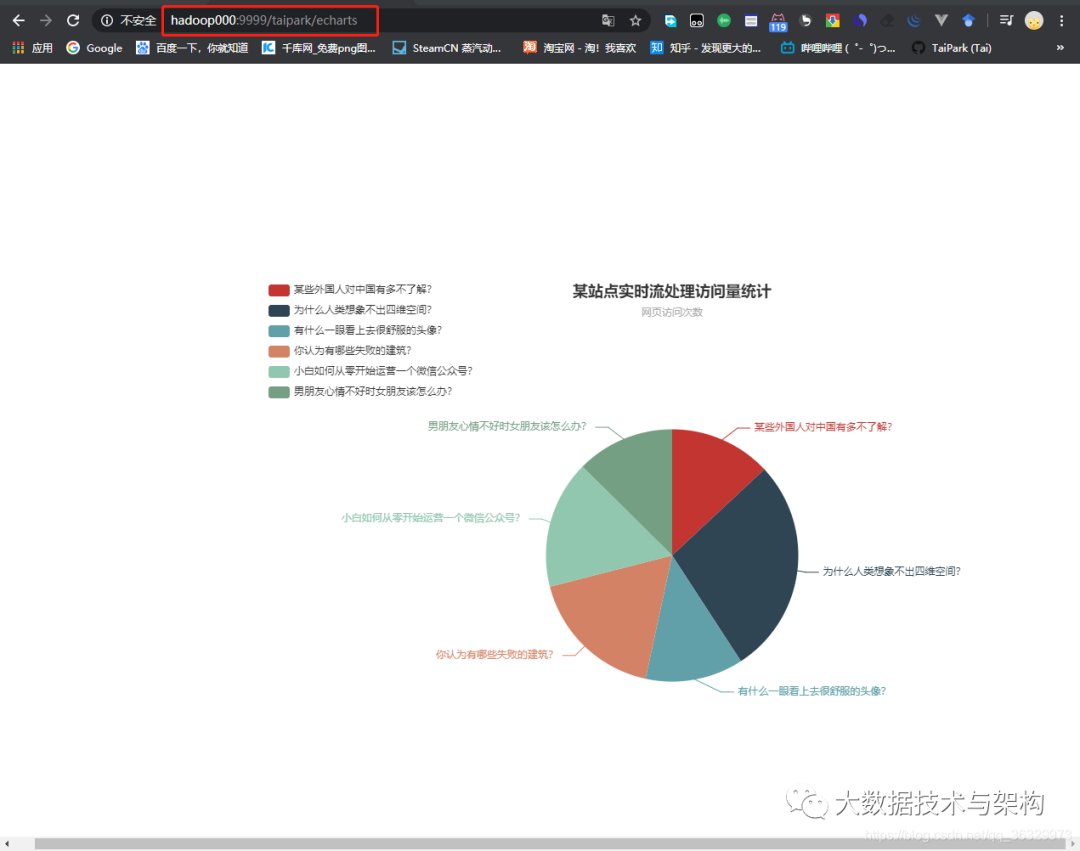

下載JQuery，并放到static/js下，新建echarts.html：

        web_stat
