目標檢測漲點方法：目標框加權融合-Weighted Boxes Fusion（源碼分享）
01
NMS&WBF
1.1 NMS
NMS消除冗余的邊界框的流程如下：
根據置信度得分進行排序
選擇置信度最高的比邊界框添加到最終輸出列表中，將其從邊界框列表中刪除
計算所有邊界框的面積
計算置信度最高的邊界框與其它候選框的IoU。
刪除IoU大于閾值的邊界框
重復上述過程，直至邊界框列表為空。
NMS方法雖然簡單有效，但在更高的目標檢測需求下，也存在如下缺點：
密集重疊場景造成誤過濾：將得分較低的邊框強制性地去掉，如果物體出現較為密集時，本身屬于兩個物體的邊框，其中得分較低的也有可能被抑制掉，降低了模型的召回率。
速度：NMS的實現存在較多的循環步驟，GPU的并行化實現不是特別容易，尤其是預測框較多時，耗時較多。
框的置信度和分類的置信度并不是完全對齊的，NMS簡單地將得分作為一個邊框的置信度，但在一些情況下，得分高的邊框不一定位置更準
1.2 WBF
下面是WBF的算法步驟：
每個模型的每個預測框都添加到List B，并將此列表按置信度得分C降序排列
建立空List L 和 F（用于融合的）
循環遍歷B，并在F中找到于之匹配的box（同一類別MIOU > 0.55）
如果 step3 中沒有找到匹配的box 就將這個框加到L和F的尾部
如果 step3 中找到了匹配的box 就將這個框加到L，加入的位置是box在F中匹配框的Index.
L中每個位置可能有多個框，需要根據這多個框更新對應F[index]的值。使用所有的在L[index]的T個邊界框重新計算F [index] 中邊界框的坐標和置信度得分:
02
WBF快速實現目標檢測漲點的方法
WBF可以實現目標框加權融合消除冗余的邊界框，基于它的特點我們可以使用WBF快速實現目標檢測漲點，主要方法有以下幾種：
1、用WBF替代檢測網絡中的NMS方法

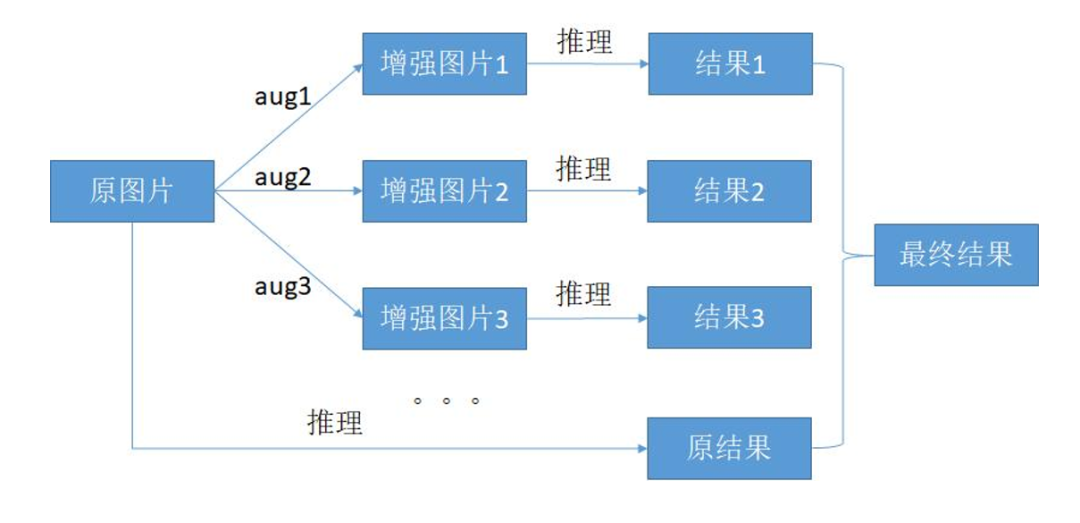

2、利用WBF實現測試增強TTA結果的融合
3、利用WBF實現目標檢測的多模型集成
接下來我們將以YOLOV5代碼進行舉例，完整使用代碼可以關注公眾號后臺回復"WBF"獲取
2.1 用WBF替代檢測網絡中的NMS方法
pip install ensemble-boxespip install --upgrade pippip install --upgrade setuptools
pip install --no-deps '../input/weightedboxesfusion/'2、調用WBF的庫：
from ensemble_boxes import *boxes, scores, labels = weighted_boxes_fusion(boxes_list, scores_list, labels_list, weights=weights, iou_thr=iou_thr, skip_box_thr=skip_box_thr)= model(img, augment=opt.augment)[0]pred = non_max_suppression(pred, opt.conf_thres, opt.iou_thres, classes=opt.classes, agnostic=opt.agnostic_nms)
pred = model(img, augment=False)[0]boxes = []scores = []clses = []pred = non_max_suppression(pred, opt.conf_thres, opt.iou_thres, classes=opt.classes, agnostic=opt.agnostic_nms)for i, det in enumerate(pred): # detections per imageif det is not None and len(det):# Rescale boxes from img_size to im0 sizedet[:, :4] = scale_coords(img.shape[2:], det[:, :4], im0.shape).round()for *xyxy, conf, cls in det:boxes.append([int(xyxy[0]), int(xyxy[1]), int(xyxy[2]), int(xyxy[3])])scores.append(conf)clses.append(cls)boxes = np.array(boxes)scores = np.array(scores)clses = np.array(clses )def run_wbf(boxes, scores, clses, image_size=1024, iou_thr=0.5, skip_box_thr=0.7, weights=None):boxes = [box/(image_size) for box in boxes]boxes, scores, labels = weighted_boxes_fusion(boxes, scores, clses, weights=None, iou_thr=iou_thr, skip_box_thr=skip_box_thr)boxes = boxes*(image_size)return boxes, scores, labelspred_boxes, scores, labels = run_wbf(boxes , scores , clses , image_size, iou_thr=iou_thr, skip_box_thr=skip_box_thr)
def TTAImage(image, index):image1 = image.copy()if index==0:rotated_image = cv2.rotate(image1, cv2.ROTATE_90_CLOCKWISE)return rotated_imageelif index==1:rotated_image2 = cv2.rotate(image1, cv2.ROTATE_90_CLOCKWISE)rotated_image2 = cv2.rotate(rotated_image2, cv2.ROTATE_90_CLOCKWISE)return rotated_image2elif index==2:rotated_image3 = cv2.rotate(image1, cv2.ROTATE_90_CLOCKWISE)rotated_image3 = cv2.rotate(rotated_image3, cv2.ROTATE_90_CLOCKWISE)rotated_image3 = cv2.rotate(rotated_image3, cv2.ROTATE_90_CLOCKWISE)return rotated_image3elif index == 3:return image1def rotBoxes90(boxes, im_w, im_h):ret_boxes =[]for box in boxes:y1, x2, y2 = boxy1, x2, y2 = x1-im_w//2, im_h//2 - y1, x2-im_w//2, im_h//2 - y2y1, x2, y2 = y1, -x1, y2, -x2y1, x2, y2 = int(x1+im_w//2), int(im_h//2 - y1), int(x2+im_w//2), int(im_h//2 - y2)y1a, x2a, y2a = min(x1, x2), min(y1, y2), max(x1, x2), max(y1, y2)y1a, x2a, y2a])return np.array(ret_boxes)
im_w, im_h = im01.shape[:2]enboxes = []enscores = []for i in range(4):im0 = TTAImage(im01, i)boxes, scores = detect1Image(im0, imgsz, model, device, conf_thres, iou_thres)for _ in range(3-i):boxes = rotBoxes90(boxes, im_w, im_h)if 1: #i<3:enboxes.append(boxes)enscores.append(scores)boxes, scores = detect1Image(im01, imgsz, model, device, conf_thres, iou_thres)enboxes.append(boxes)enscores.append(scores)def run_wbf(boxes, scores, image_size=1023, iou_thr=0.5, skip_box_thr=0.7, weights=None):labels = [np.zeros(score.shape[0]) for score in scores]boxes = [box/(image_size) for box in boxes]boxes, scores, labels = weighted_boxes_fusion(boxes, scores, labels, weights=None, iou_thr=iou_thr, skip_box_thr=skip_box_thr)boxes = boxes*(image_size)return boxes, scores, labelsboxes, scores, labels = run_wbf(enboxes, enscores, image_size = im_w, iou_thr=0.6, skip_box_thr=0.5)
weights = 'weights/best.pt'weights1 = "../input/otherweight/best_yolov5x_fold0.pt"# load modelmodel = torch.load(weights, map_location=device)['model'].float() # load to FP32model.to(device).eval()# Load model 1model1 = torch.load(weights1, map_location=device)['model'].float() # load to FP32model1.to(device).eval()boxes, scores = detect1Image(im0, imgsz, model, device, conf_thres, iou_thres)boxes, scores = detect1Image(im0, imgsz, model1, device, conf_thres, iou_thres)boxes, scores, labels = weighted_boxes_fusion(boxes, scores, labels, weights=None, iou_thr=iou_thr, skip_box_thr=skip_box_thr)
03
總結
?------------------------------------------------
